Modern DNA Cloning Techniques for Modular Assembly

The history of DNA assembly reflects a progression from rigid to flexible methodologies.

Early workflows used restriction enzymes to cut DNA at precise sites for insertion into vectors. This method was foundational but limited by site availability and the risk of unintended cuts.

Golden Gate assembly improved upon this by employing type IIS enzymes (e.g., BsaI, BsmBI) that cut outside their recognition sites, allowing for seamless, directional assembly of multiple fragments.

Frameworks like MoClo (Modular Cloning) formalized this process by defining standard overhangs for specific part types (e.g., promoter, CDS, terminator), enabling high-throughput, combinatorial assembly.

Scarless methods like Gibson Assembly and NEBuilder HiFi further expanded flexibility by eliminating the need for restriction sites altogether. These rely on homologous overlaps introduced via PCR primers, enabling precise, seamless joins between fragments.

Choosing the best method depends on project complexity, part reusability, cost, and tolerance for sequence constraints.

Restriction cloning uses enzymes to digest DNA at defined sequences (e.g., EcoRI: GAATTC), generating sticky or blunt ends for ligation into vectors. Despite the emergence of more sophisticated methods, It remains a reliable, cost-effective approach for basic cloning tasks.

However, it offers limited flexibility. Internal restriction sites can complicate cloning, and resulting constructs may include non-functional scars. These factors limit its utility in more ambitious or combinatorial designs.

For example, if you're constructing a plasmid to express a single fluorescent reporter under a constitutive promoter, restriction cloning may be perfectly adequate. But if you plan to test dozens of combinations of genes and regulatory elements, it's likely to become an obstacle rather than an asset.

Gateway cloning is a proprietary recombination-based system that uses site-specific recombination between att sequences to transfer DNA fragments between vectors. It operates in two main steps: a BP reaction to move an insert into an entry vector, and an LR reaction to shuttle it into various destination vectors for expression.

Compared to restriction cloning, Gateway offers higher efficiency and eliminates the need for restriction sites or ligation. However, it introduces relatively large recombination scars and is limited to predefined vectors with compatible recombination sites. As such, it’s ideal for high-throughput gene expression or ORF screening where speed and consistency are critical, but not well-suited for precise modular design or scarless applications.

Golden Gate cloning leverages type IIS enzymes like BsaI (recognition site: GGTCTC) and BsmBI (CGTCTC) to cleave DNA outside the recognition site, enabling the precise ligation of fragments with custom 4-bp overhangs.

These overhangs determine the assembly order and must be unique and non-palindromic to avoid misligation. In systems like MoClo, overhangs are standardized—for instance, a promoter might end in “AATG,” while a CDS begins with “AATG,” ensuring compatibility.

Golden Gate is highly efficient for multi-fragment assemblies and supports automation, but strict sequence requirements (e.g., no internal BsaI sites) and the need for enzyme-compatible buffers can introduce complexity. Scar formation is rare but possible, especially when overhang design is not optimized. Additionally, enzyme performance can vary depending on buffer conditions and sequence context. Sequence design tools like j5 or Benchling’s Golden Gate designer are essential to streamline this process.

Scarless cloning methods avoid restriction enzymes entirely. Instead, fragments with overlapping ends are joined enzymatically. The overlaps are typically 15–30 bp and are introduced during PCR amplification using carefully designed primers. Thus, primer design plays a pivotal role in these methods. Overlaps must maintain the correct reading frame and avoid secondary structures that can hinder annealing or extension. Design software tools can help optimize these overlaps and minimize errors.

Gibson Assembly uses an exonuclease to create single-stranded overhangs, a polymerase to fill in gaps, and a ligase to seal the nicks. It supports flexible assembly and is compatible with a wide range of constructs, especially when parts are designed with ~20–40 bp overlaps.

In-Fusion performs similarly but is optimized for shorter overlaps (~15 bp), streamlining the design of primers for quick assembly. It is popular for its speed and user-friendly protocols, especially for single or dual-insert workflows.

NEBuilder HiFi, developed by NEB, enhances fidelity and efficiency for more complex or high-throughput designs. It supports longer overlaps (15–30 bp), has improved performance on GC-rich or repetitive sequences, and shows robust results across diverse fragment types.

While all three methods achieve scarless assembly, NEBuilder tends to outperform others in modular plasmid workflows due to its broader tolerance for sequence contexts and superior error correction. It is particularly well-suited for:

• Custom or synthetic sequences
• Large or repetitive constructs
• High-throughput library construction
• Assembly of constructs with repetitive or difficult regions

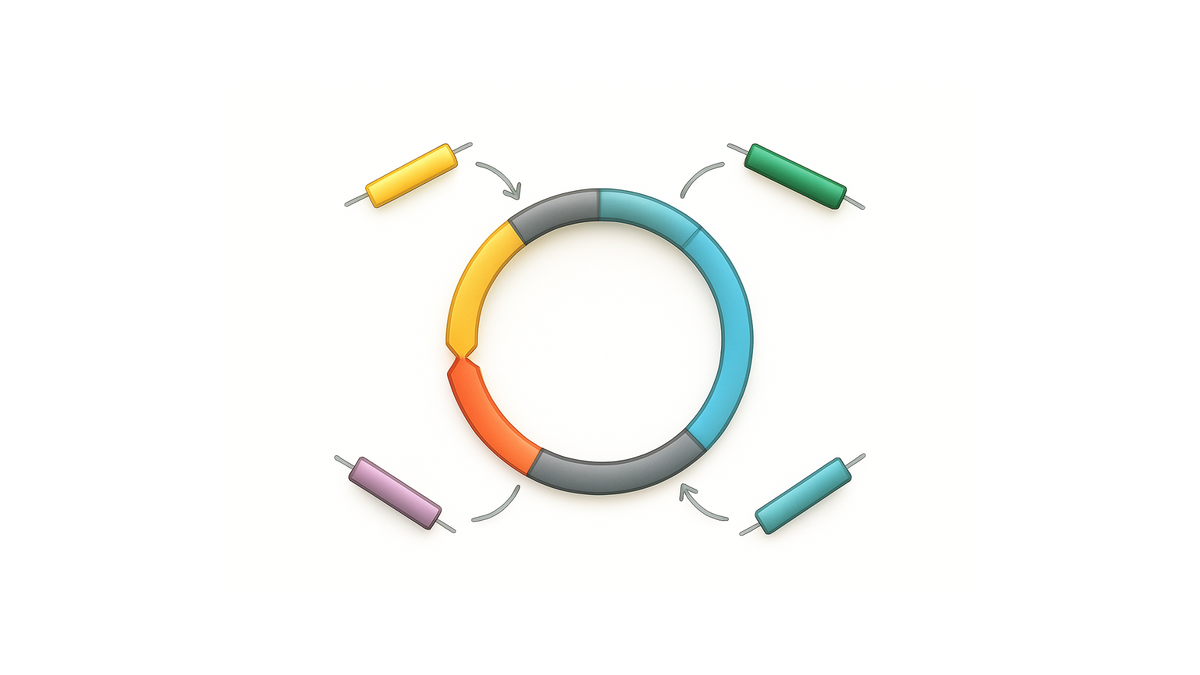

Modular assembly refers to the strategic use of standardized, interchangeable parts—such as promoters, UTRs, coding sequences, and terminators—to build DNA constructs.

By separating function into discrete, reusable elements, modular design reduces the need for custom constructs in every experiment. Instead of building a new plasmid from scratch for each variation, researchers can mix and match parts to create numerous variants rapidly.

Both Golden Gate and NEBuilder are well suited for modular workflows. Golden Gate leverages predefined overhangs to enforce compatibility, while NEBuilder accommodates more flexible design via homologous overlaps.

The TrueVector system implements a modular architecture with standardized backbones, validated functional modules, and defined interfaces to enable precise optimization of gene expression. Each TrueVector supports:

• Reuse of parts across multiple builds
• Seamless assembly of new combinations
• Comprehensive documentation through annotated maps
• Tracking the identity and provenance of each component

The result is a plasmid production process that's faster and more reliable. Annotated TrueVector maps enable visualization of each component and its function, improving documentation and collaboration.

Modular plasmid design offers several critical advantages:

• Speed: Rapid generation of new constructs by reusing validated parts
• Scalability: Easily build large libraries of variants (e.g., promoter screens, combinatorial pathway designs)
• Traceability: Maintain clear records of each part's function and source
• Reproducibility: Reduce variability between constructs by standardizing the building blocks
• Efficiency: Optimize one module without touching the rest of the plasmid

Consider the challenge of testing 8 different promoters across 3 gene variants and 2 reporter constructs. A traditional build would require 48 unique plasmids. Modular assembly enables this with minimal redundancy and maximum efficiency.

When deciding between cloning techniques, cost and context matter. Restriction cloning is the most affordable option, with minimal reagent costs and wide availability of free tools and enzymes. Gateway cloning requires proprietary kits, increasing per-sample costs but offering streamlined workflows ideal for high-throughput expression cloning. Golden Gate offers a middle ground: it uses standard enzymes and kits but requires careful part standardization. NEBuilder and other scarless assembly kits tend to have higher upfront costs due to proprietary enzymes, but they reduce failure rates and are highly flexible, often saving time and money in complex or modular designs.

Ultimately, the right method depends on your priorities: budget, time, number of constructs, and the need for modularity or scarless joins. Many real-world projects benefit from a hybrid approach. For example, restriction cloning might be used to linearize or prepare a backbone, while NEBuilder is employed to insert variable sequences or new parts.

Regardless of the method you choose, to avoid pitfalls:

• Remove internal restriction sites from inserts
• Align overhangs or overlaps precisely
• Design primers with correct orientation and reading frame
• Validate junctions in silico before synthesis

Expert sequence validation and optimization tools can dramatically reduce failure rates.

The future of molecular cloning lies in modularity, precision, and automation. By embracing modern cloning techniques and standardized part systems, researchers can accelerate discovery, reduce failure rates, and bring structure to the creative chaos of molecular biology.
